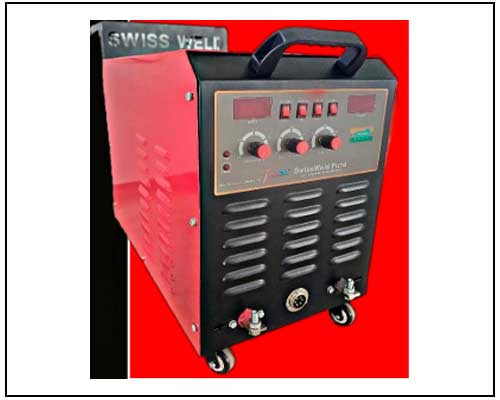

SWISS MIG 600
3Phase Power Source with Wire Feeding UnitAdvanced IGBT Inverter technology.
Dual use of Co2 MIG welding and hand welding. 36V gas heater power supply. Power grid applicable range (AC323-437V0, High power grid adaptability, suitable for long time continuous factory work. Soft or high adjustment of inductance, deep molten pool, small spatter, even weld line and perfect appearance.
- Digital Voltmeter & Ammeter
- Individual Knobs for easy parameter setting
Specifications / Technical Data
| Model | SWISS MIG 600 |
| Mains supply, V / Ph, Hz | 3Ph-415V±15%50/60/Hz |
| Frequency (Hz) | 50/60 |
| Rated Input Capacitor (KVA) | 32.7 |
| Rated Duty Cycle (%) | 60-600Amp |
| Rated Duty Cycle (%) | 100-485Amp |
| Open circuit voltage (OCV) (V) | 85 |
| Wire Feeding Speed | 14-39 (M/Min) |
| Wire Diameter (MM) | 0.8,1.0,1.2,1.6 |
| Cooling | Air |
| Weight (Kgs) | 55 |
