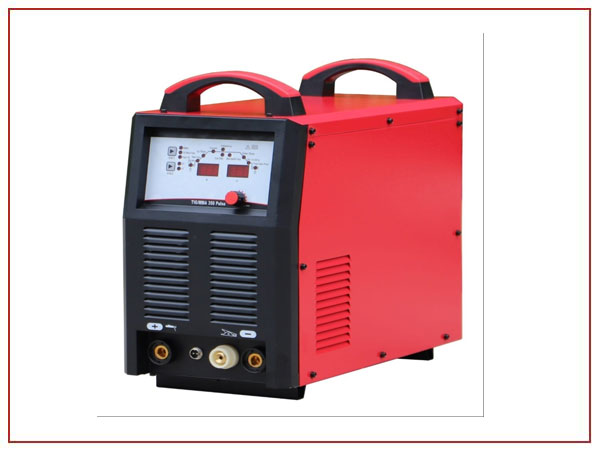

Pulse Tig Welding Machine Manufacturers in Pune, Suppliers, Dealers, Distributors and Exporters in Pune, Maharashtra
Swissweld Technologies Pvt. Ltd , leading Pulse TIG Welding Machine Manufacturers, Suppliers, Exporters, Dealers and Distributors in Pune, are offering the top quality of pulse TIG welding machine at affordable rates, which is use for welding and repairing tools and dies. It makes joints in metals via a tungsten electrode in the torch and has a higher quality of accuracy while welding.
These electrodes have the higher temperature capacity up to 11,000°F that can melt the metals and makes a weld pool. We have added various kinds of technologies in these machines such as faster pulsing rates and inverter technology for higher productivity and saving energy factors. Let’s check out our various kind of types of laser welding machine, its benefits and applications one by one!
Types of Pulse TIG Welding Machine:
As a former pulse TIG welding machine Manufacturers, Suppliers, Exporters, Dealers and Distributors in Pune, we are presenting various kinds of welding machine that gives higher performance in multiple applications. Here we have listed down some types such as:
- Pulse TIG Welding Machine 250 Amp: These are basically used for medium-duty applications due to capacity of 250 Amp and able to weld thin to moderate-thickness metals. It is highly used in the industries due to its stable welding arcs and higher control over the heat input and reduces warping and distortion. This machine has the adjustable pulse frequency and allows control over the heat concentration and reduces the chance of burn through on thinner metals.
- Pulse TIG Welding Machine 400 Amp: This machine has the more power and making it suitable for using in industrial applications due to its 400 Amp power. It can able to weld heavy and thicker metals for maintaining high stability. Our pulse welding machine has wide range of pulse settings for detailed adjustment for pulse width, frequency and amperage. These are used in construction and infrastructure industries and give more productivity.
- Pulse TIG Welding Machine 500 Amp: Our Pulse TIG Welding Machine 500 Amp has the higher power input and used in the heaviest applications in the industrial environments. This machine can able to weld thicker metals and maintains pulse control to avoid excessive heat input while working on major tasks. The new extended duty cycle technology in our machine can helps for working them into longer periods of time with high amperages.
Technical Features of Pulse TIG Welding Machine:
We have added below a technical sheet of our TIG welding machine that gives a more detailed information about the machines such as:
| Specification | Pulse TIG Welding Machine 250 Amp | Pulse TIG Welding Machine 400 Amp | Pulse TIG Welding Machine 500 Amp |
|---|---|---|---|
| Output Amperage Range | 5 - 250 Amps | 10 - 400 Amps | 20 - 500 Amps |
| Input Power Requirement | 220V Single Phase, 50/60 Hz | 380V Three Phase, 50/60 Hz | 415V Three Phase, 50/60 Hz |
| Duty Cycle | 60% at 250 Amps | 70% at 400 Amps | 80% at 500 Amps |
| Pulse Frequency Range | 0.5 - 500 Hz | 0.5 - 1000 Hz | 0.5 - 1500 Hz |
| Pulse Width Control | 10% - 90% | 5% - 95% | 5% - 95% |
| AC/DC Modes | Yes (AC for Aluminum, DC for Steel and Other Metals) | Yes | Yes |
| Waveform Control Options | Sine Wave, Square Wave | Sine Wave, Square Wave, Soft Square | Sine Wave, Square Wave, Soft Square, Triangular |
| High-Frequency Start | Yes | Yes | Yes |
| Pre-Flow and Post-Flow Control | 0 - 10 seconds | 0 - 20 seconds | 0 - 20 seconds |
| Cooling System | Air-Cooled or Optional Water-Cooled | Advanced Air-Cooled or Water-Cooled | Enhanced Industrial Water-Cooled System |
| Display Type | Digital Control Panel with LCD | Digital Touch Panel with Parameter Memory | High-Resolution Digital Interface with Memory Slots |
| Remote Control Compatibility | Yes | Yes | Yes |
| Current Ramp-Up and Ramp-Down Control | 0 - 5 seconds | 0 - 10 seconds | 0 - 15 seconds |
Benefits of Pulse TIG welding machine:
As a former Pulse TIG Welding Machine manufacturers and suppliers in Pune, all types of machines have multiple amounts of features that give several benefits, such as:
- Improved Control over Heat Input : This function in our welding machine allows for controlling peak and base current as per requirement and keeping them adjusted over a longer time. Due to this function, it can reduce the risk of warping or burning through thin materials and is ideal for use in thin gauge metals.
- High-Frequency (HF) and Low-Frequency Pulse Settings: Our machine is usually known for its higher accuracy in welding, and we have added new features such as HF and LF pulse settings. This setting is useful for finer control over the thin metals, and low-frequency pulsing creates deeper weld penetrations on thicker metals.
- Advanced Inverter Technology: Our modern TIG welding machines are installed with advanced, quality inverter technology that can help maintain productivity over longer periods of time. These inverters can reduce power consumption, making the machine energy efficient and lighter.
- Automatic Temperature Control: These welding machines are built for operating major and heavy tasks in the industrial sectors. We have added built-in safety mechanisms such as automatic temperature control and overload protection, which can prevent overheating, increase the machine’s lifespan, and ensure safety during heavy use.
Applications of Pulse TIG Welding Machine:
Being the prominent TIG welding machine suppliers and exporters in Pune, our machines are used in various kinds of applications due to their advanced qualities. Here we have listed down some lists of applications, such as:
- Thin Metal Welding: Ideal for welding thin materials with reduced risk of burn-through.
- Stainless steel fabrication: produces clean, precise welds with minimal heat distortion.
- Aluminum Welding: Our TIG welding machine enables stable welding of aluminum with better puddle control.
- Aerospace components: These can be used for high-precision welding in aerospace due to their high control and quality.
- Automotive Manufacturing: Excellent for joining thin metals in car bodies and exhaust systems.
- Medical Device Manufacturing: Used for precise, contamination-free welding on medical devices.
- Pipe and Tube Welding: Our pulse TIG welding machine allows controlled welding on pipes, especially thin-walled types.
- Jewelry Making: Delivers delicate and precise welds for fine jewelry fabrication.
- Food and Beverage Equipment: These are used for providing clean welds suitable for hygienic food processing equipment.
- Art and sculpture: enables artists to create intricate and clean metalwork designs.
As a Leading TIG welding machine manufacturers , suppliers, exporters, dealers and distributors in Pune, we as Swissweld Technologies Pvt. Ltd. are providing the best quality welding machines that are specially manufactured for making accurate welding over thick and thin metals and non-metals. We have installed new technological innovations in these machines to increase their performance and be able to use them in any kind of industrial task. For more information, contact us today.
