TIG Welding Machine Manufacturers in Maharashtra, Suppliers, Dealers, Distributors and Exporters in Maharashtra
Swissweld Technologies Pvt. Ltd. , a leading TIG welding machine manufacturers, suppliers, exporters, dealers and distributors in Maharashtra, is offering one of the best TIG welding machines, which are usually used for creating high-quality and spatter-free welds for materials such as stainless steel, aluminium and nickel alloys. This welding process typically relies on a tungsten electrode and inert gas to create and control the arc, which melts the metal and joins the pieces together. We've used high-quality materials like steel and aluminum, along with components such as wires, transformers, and capacitors, ensuring smoother overall performance. We offer this machine in various capacities ranging from TIG 250 Amp to 600 AMP as per requirement. Let’s check out its all types, features and applications one by one!

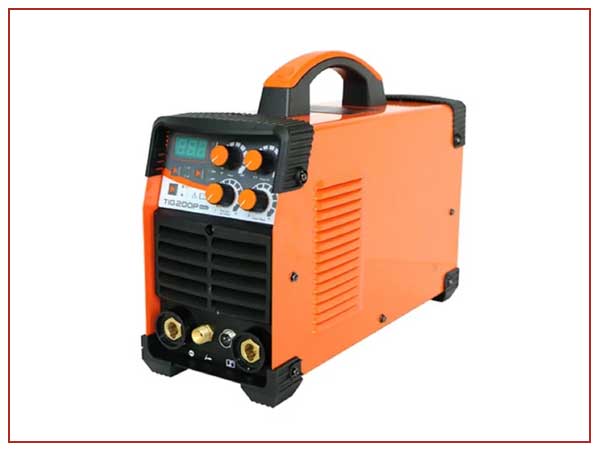

What is a TIG welding machine?
A TIG welding machine is a commonly used and highly demanding machine due to its strong and accurate quality of welds. It creates an arc between a tungsten electrode and the metal being welded to join the pieces together. The tungsten electrode is basically connected to the negative terminal, and the workpiece is attached to the positive terminal to create a high-quality spark. The argon and helium inert gas is used, and it protects from oxidation and chemical reactions.
Types of TIG Welding Machine Manufacturers:
Being the best single phase TIG welding machine suppliers and exporters in Maharashtra, we are providing multiple types of machines as per handling capacity and power, such as:
- Swiss TIG 250 Amp: This is our primary and commonly used TIG welding machine, which has a power output of 250 Amps and particularly welds materials such as aluminum, stainless steel, and mild steel. We have added new inverter technology to this machine, which increases efficiency, and installed a new digital control panel for easier adjustment and control. These are highly used in automotive repair, artistic welding, and HVAC manufacturing.
- Swiss TIG 400 Amp: For giving high-quality and stronger welding to thick stainless steel, aluminum, and other alloys, our Swiss TIG 400 Amp is highly used. It has a power output of 400 amps and approximately 60-80% at maximum output. For controlling the overall temperature of the machine while working on major tasks, we have added an improved cooling system and pulse functionality for better control over heat.
- Swiss TIG 600 Amp: We provide this welding machine for handling heavy-duty tasks, including welding stainless steel, titanium, and other exotic metals that require deep penetration. With a power output of 600 amps and advanced pulse control, it effectively manages heat input, particularly when working with thin materials. The high-frequency start feature helps minimize tungsten contamination and enhances overall performance.
- Pulse TIG Welding Machine 250 Amp: We offer our new advanced and modern series of welding machines, which have adjustable pulse frequencies for optimized welding. It has a power output of 250 amps for handling thin metals such as galvanized steel and aluminum. To increase performance, we have added multiple built-in sensors in these welding machines for real-time monitoring of multiple processes and to maintain arc stability. These are commonly used in the thin sheet metal fabrication industry, jewelry making, and electrical components.
- Pulse TIG 400 Amp: This machine is equipped with advanced control over heat input and penetration, making it easier to handle demanding, heavy-duty tasks. It delivers a power output of 400 amps and has a duty cycle of around 60-80%. To ensure proper welding, it includes auto-set features that help determine the material’s thickness, along with advanced waveform control to fine-tune the arc characteristics based on the material type and thickness. This machine is highly sought after in automotive fabrication and industrial manufacturing.
- Pulse TIG 500 Amp: This is our universal machine, highly adjustable and suitable for different welding scenarios. It has a power output of up to 500 amps and handles thick and hard metals such as carbon steel and cast iron. For smooth handling of the overall operation, we have added advanced cooling technology to maintain performance during heavy-duty operations. These welding machines are commonly used in the oil and gas pipeline construction and heavy structural steel manufacturing industries.
Technical Specifications of TIG Welding Machine:
We have mentioned below a technical sheet table of our TIG Welding Machine , which gives you detailed information of our each type:
| Specification | Swiss TIG 250 Amp | Swiss TIG 400 Amp | Swiss TIG 600 Amp | Pulse TIG 250 Amp | Pulse TIG 400 Amp | Pulse TIG 500 Amp |
|---|---|---|---|---|---|---|
| Input Voltage (V) | 220V, 1-Phase | 380V, 3-Phase | 380V, 3-Phase | 220V, 1-Phase | 380V, 3-Phase | 380V, 3-Phase |
| Input Power (kW) | 7.8 kW | 15.0 kW | 21.0 kW | 7.5 kW | 14.0 kW | 18.0 kW |
| Output Current Range (A) | 10-250A | 10-400A | 10-600A | 5-250A | 5-400A | 5-500A |
| Duty Cycle (%) | 60% @ 250A | 60% @ 400A | 60% @ 600A | 60% @ 250A | 60% @ 400A | 60% @ 500A |
| No Load Voltage (V) | 65V | 65V | 75V | 60V | 70V | 70V |
| Welding Type | TIG, MMA | TIG, MMA | TIG, MMA | TIG (Pulse), MMA | TIG (Pulse), MMA | TIG (Pulse), MMA |
| Pulse Frequency Range (Hz) | N/A | N/A | N/A | 0.5-500 Hz | 0.5-500 Hz | 0.5-500 Hz |
| Pulse Duty Ratio (%) | N/A | N/A | N/A | 10-90% | 10-90% | 10-90% |
| AC/DC Capability | DC | DC | DC | DC | DC | DC |
| Ignition Type | HF Start | HF Start | HF Start | HF Start | HF Start | HF Start |
| Arc Force Adjustment | Yes | Yes | Yes | Yes | Yes | Yes |
| Post Flow Time (s) | 0-10 seconds | 0-10 seconds | 0-10 seconds | 0-10 seconds | 0-10 seconds | 0-10 seconds |
| Gas Pre-Flow Time (s) | 0-1 second | 0-1 second | 0-1 second | 0-1 second | 0-1 second | 0-1 second |
| Cooling System | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled |
Features of TIG Welding Machine
As a former single phase TIG welding machine suppliers and exporters in Maharashtra, we have added new functions and technological updates in our machine gives you multiple benefits such as:
- Digital Interference and Smart Control: To improve performance and ease of use, we have added a big touchscreen display to each machine. The updated software ensures smooth operation without lag. The new programmable features allow customization of the software as per specific requirements.
- Accurate Control: Our single-phase TIG welding machine now features Inverter Technology, which enables precise welding on lightweight and thin metals like stainless steel and aluminum. This technology regulates heat input and arc stability, making it ideal for thin welding applications in the automotive and aerospace industries.
- Advanced Cooling System: Equipped with advanced sensors, our TIG welding machine effectively controls excessive heat, preventing fire hazards and machine failures. We have integrated liquid-cooled technology and an intelligent fan control system to maintain optimal temperature and extend the machine's lifespan.
- All-Position Welding: The inclusion of pulsed TIG welding technology allows users to alternate between high and low currents in rapid succession, ensuring controlled heating and cooling. This feature enables all-position welding, including flat, vertical, and overhead applications, making it suitable for industries such as construction, shipbuilding, and automotive manufacturing.
Applications of TIG Welding Machine:
Being one of the best TIG Welding Machine dealers and distributors in Maharashtra, our all machines are applied in multiple applications such as:
- Repair of aluminum aircraft components and parts
- Aerospace industry for high-precision welds
- Welding thin sections of stainless steel
- Manufacturing of pressure vessels and tanks
- Fabrication of chemical processing equipment
- Jewelry and artistic metalwork with precision
- Automotive exhaust systems and chassis fabrication
- Shipbuilding and marine applications for durability
- Welding of medical devices and instruments
- Bike and motorcycle frame construction welding
- Nuclear power plant piping and vessel fabrication
- Food and beverage equipment fabrication welding
As leading TIG Welding Machine manufacturers, suppliers, exporters, dealers and distributors in Maharashtra, we as Swissweld Technologies Pvt. Ltd. are providing one of the best advance TIG welding machines, which is made with new technological updates and made with strong quality materials. This machine uses inert gas for welding that gives accurate welding over thin metals for increased productivity. For more information, contact us today.
